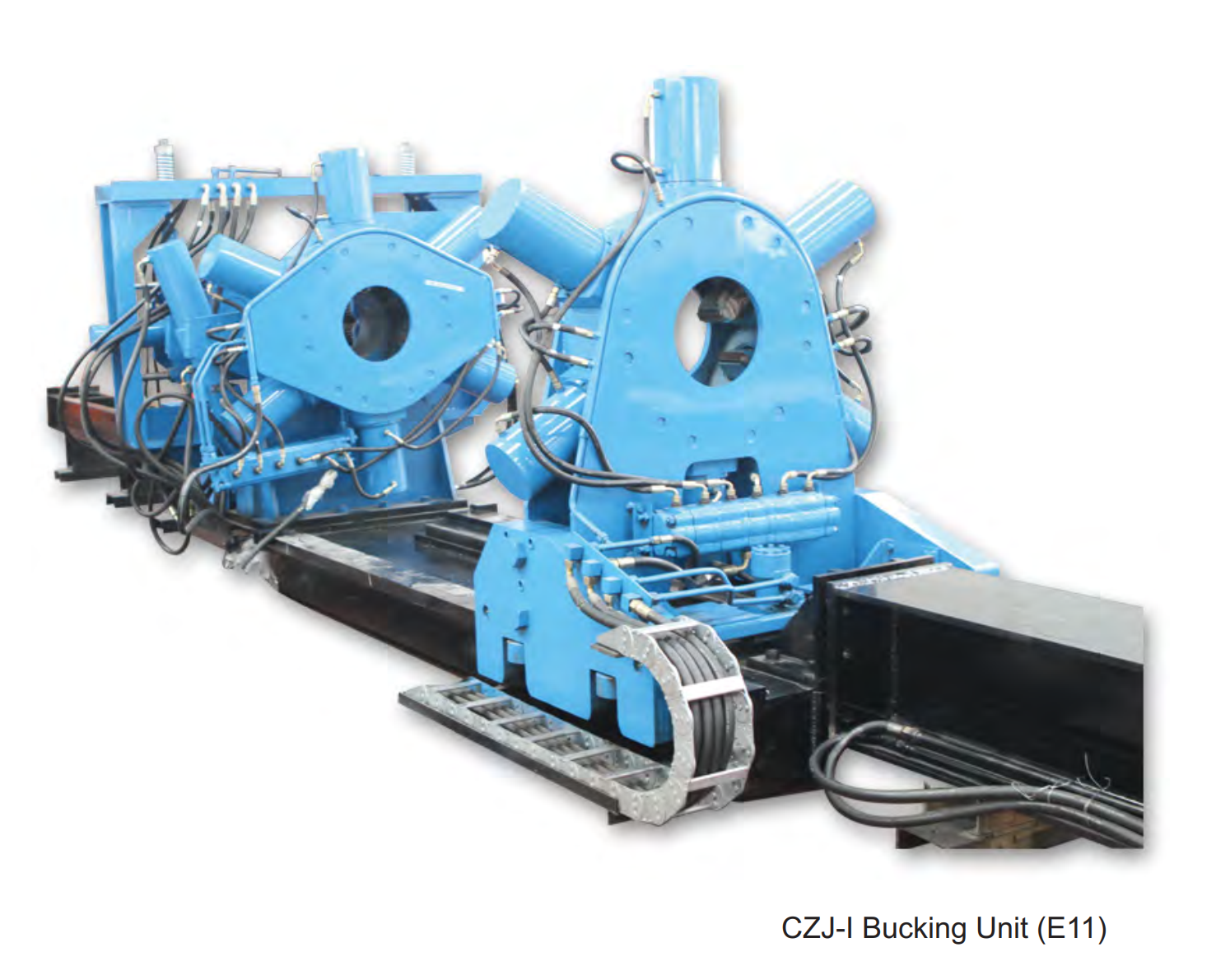

CZJ-I HYDRAULIC BUCKING UNIT
CZJ-I Hydraulic Make/Break Unit is a highly automated and self-contained hydraulic make-up and break-out machine. It has high make-up/break-out torque, supports a wide range of pipe diameter and is specially designed to reduce the risk of slippage during make/break operations.
CZJ-I Hydraulic Make/Break Unit comes with the option of Hydraulic Push/Pull Assembly and Hydraulic Spinner (Quick Rotary) Assembly. The Push/Pull Assembly supports axial loading where push/pull force is required and is generally used in the maintenance of mud motors to insert or remove rotors from stators. The hydraulic spinner ensures quick spin up / spin out of low torque shouldered connections.
Specifications - CZJ-I Hydraulic Bucking Unit
Model |
Product Code |
Motor Power (KW) |
Clamp Pipe Dia. Range (mm) |
Max. Makeup Torque (KN•m) |
Max. Breakout Torque (KN•m) | Pipe Dia. For Quick Makeup / Breakout Unit (mm) |
Motor Speed (rpm) |
Max. Working Pressure (MPa) | Quick Makeup / Breakout Unit Torque (KN•m) |
Max. Tons For Push/Pull Cylinder (KN) |
Stroke For Push/ Pull Cylinder (mm) |
CZJ320I |
E11110000 |
15 |
Φ73-310 |
10-118 |
168 |
Φ73-340 |
1460 |
12 |
2.5-4.0 |
150 |
1500 |
CZJ400I |
E11210000 |
15 |
Φ73-390 |
15-150 |
180 |
Φ73-340 |
1460 |
12 |
2.5-4.0 |
150 |
1500 |
