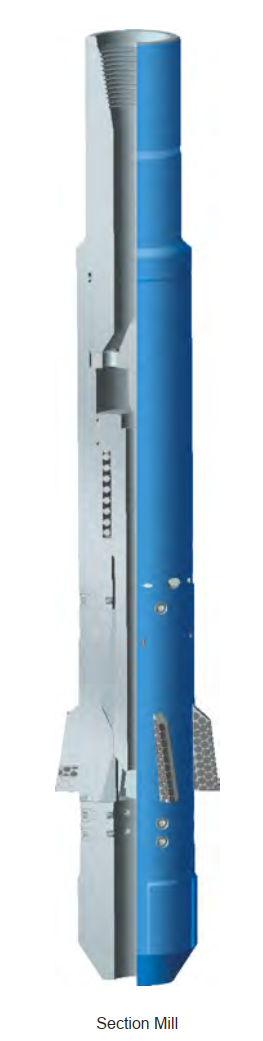

SECTION MILL
Section mills are primarily used to milling sections in the casing (for side tracking, gravel packing) and perforation zones. TIANHE section mill is available in a variety of Casing sizes, ranging from 4 1/2" to 13 3/8". The blades are all dressed to enable simultaneously milling of the casing. The milling rate is usually limited by the ability of the fluid in removing the cuttings.
When ordering please specify:
● Tool model
● Size and weight of Casing to be milled
● Top connection
Specifications - Section Mill
Model |
DXG114 |
DXG127 |
DXG140 |
DXG168 |
DXG178 |
Product Code | D111400 | D112700 | D114000 | D116800 | D117800 |
Casing Size (in) | 4 1/2 | 5 | 5 1/2 | 6 5/8 | 7 |
Body O.D (in) | 3 3/4 | 4 1/8 | 4 1/2 | 5 1/2 | 6 |
Fishing Neck O.D (in) | 2-3/8 REG | 2-7/8 REG | 2-7/8 REG | 3-1/2 REG | 3-1/2 REG |
Model |
DXG194 |
DXG219 |
DXG245 |
DXG273 |
DXG298 |
DXG340 |
Product Code | D119400 | D121900 | D124500 | D127300 | D129800 | D134000 |
Casing Size (in) | 7 5/8 | 8 5/8 | 9 5/8 | 10 3/4 | 11 3/4 | 13 3/8 |
Body O.D (in) | 6 1/2 | 7 3/8 | 8 1/4 | 9 1/4 | 10 | 11 1/2 |
Fishing Neck O.D (in) | 3-1/2 REG | 4-1/2 REG | 4-1/2 REG | 6-5/8 REG | 6-5/8 REG | 6-5/8 REG |
