RELEASING SPEAR ACCESSORYS

Pack-off Assembly

Pack-off Assembly is available for all TIANHE Spear Assemblies and is designed to efficiently pack-off all sizes of tubing and casing. Circulation through the fish is enabled by attaching the Spear Pack-off Assembly to the bottom of the spear with a sub type nut.

Spear Stop Sub

The TIANHE Releasing Spear Stop Sub Assembly is an accessory designed to convert a releasing spear with a flush-type mandrel into a shouldered type spear. It is installed in the box connection at the top of the mandrel when    the use of a positive stop is desired or required. A stop ring can be added     to increase shoulder diameter. All stop rings are furnished with left-hand threads.

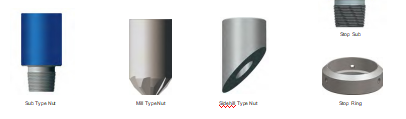

Optional Nuts

Mill Type to mill away burrs, Sub Type to connect and run other tools below the Spear, and Sidehill Type to center the spear in greatly oversize holes to assure entry of the Spear into the fish.
