INTEGRAL BLADE STABILIZER
TIANHE Integral Blade Stabilizer (IBS) is a one piece rotating
stabilizer which can be placed near bit or higher in the drill
string. It is a one piece construction manufactured from high
strength alloy steel (non-magnet steel optional), that prevents differential sticking of the drillstring by stabilizing the BHA and keeping drill collars and drill pipes away from the borehole wall. This reduces vibration, drill pipe whirl, and wellbore tortuosity; furthermore, the stabilization maintains drilling trajectory whether
drilling straight, horizontal, or directional wells.

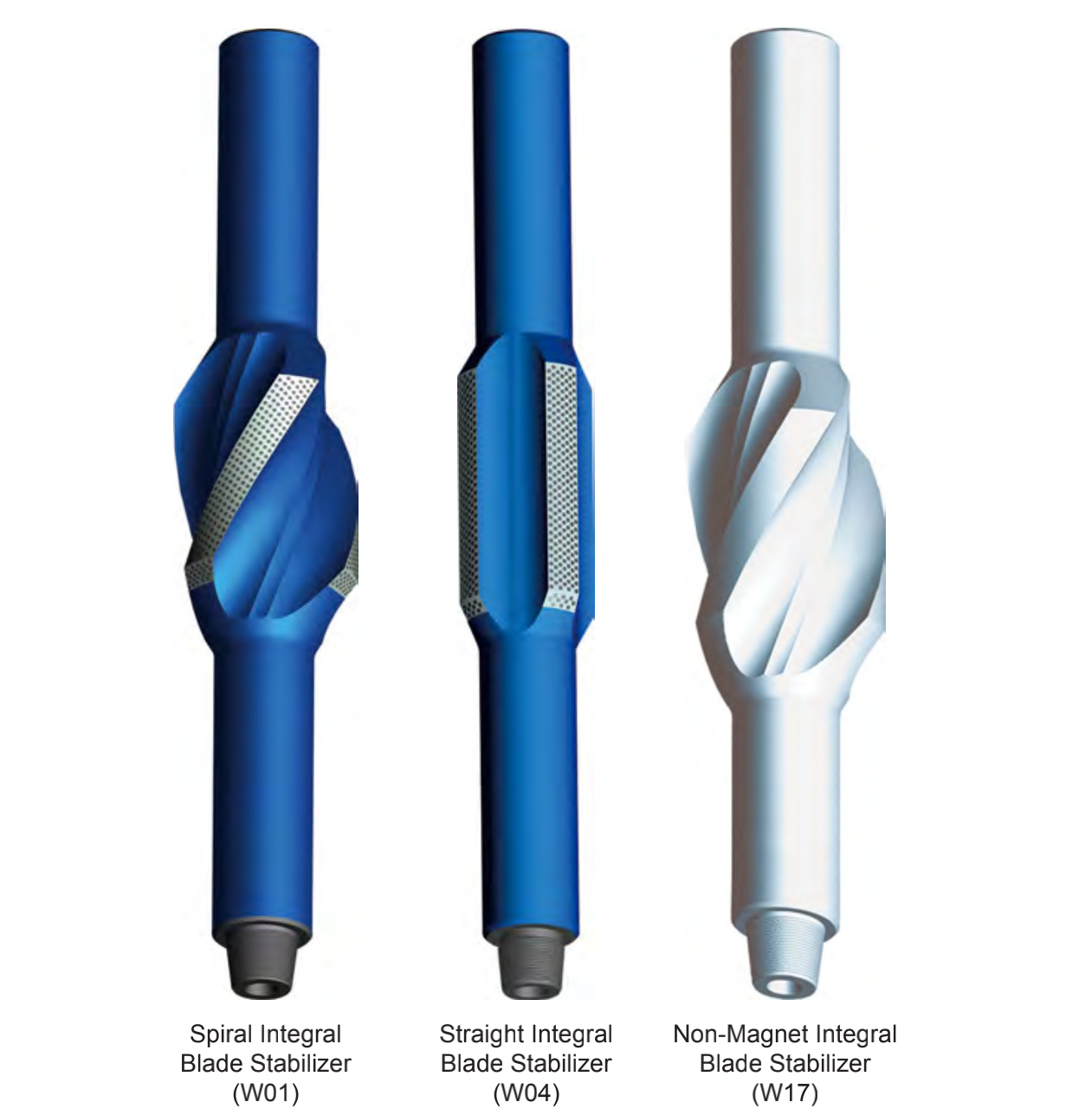

Optional Stabilizers
TIANHE offers several options for IBS, in both alloy steel and non-magnet materials:
● Spiral Integral Blade Stabilizer;
● Straight Integral Blade Stabilizer;
● Non-Magnet Integral Blade Stabilizer;
When ordering please specify
● Hole size or required blade O.D.;
● Number of blades required (3 or 4 are standard styles);
● Straight or spiral blades;
● Hardfacing type ;
● Top and bottom connections;
● Body diameter required;
● String or near bit application;
● Alloy steel or non-magnet materials ;
● Special features SRG on connections, bored for float etc.
